Number

The section here details various configuration options available for the Number widget in NocoDB dashboards. This widget is designed to display key performance indicators (KPIs) and metric summaries in a clear, concise format.

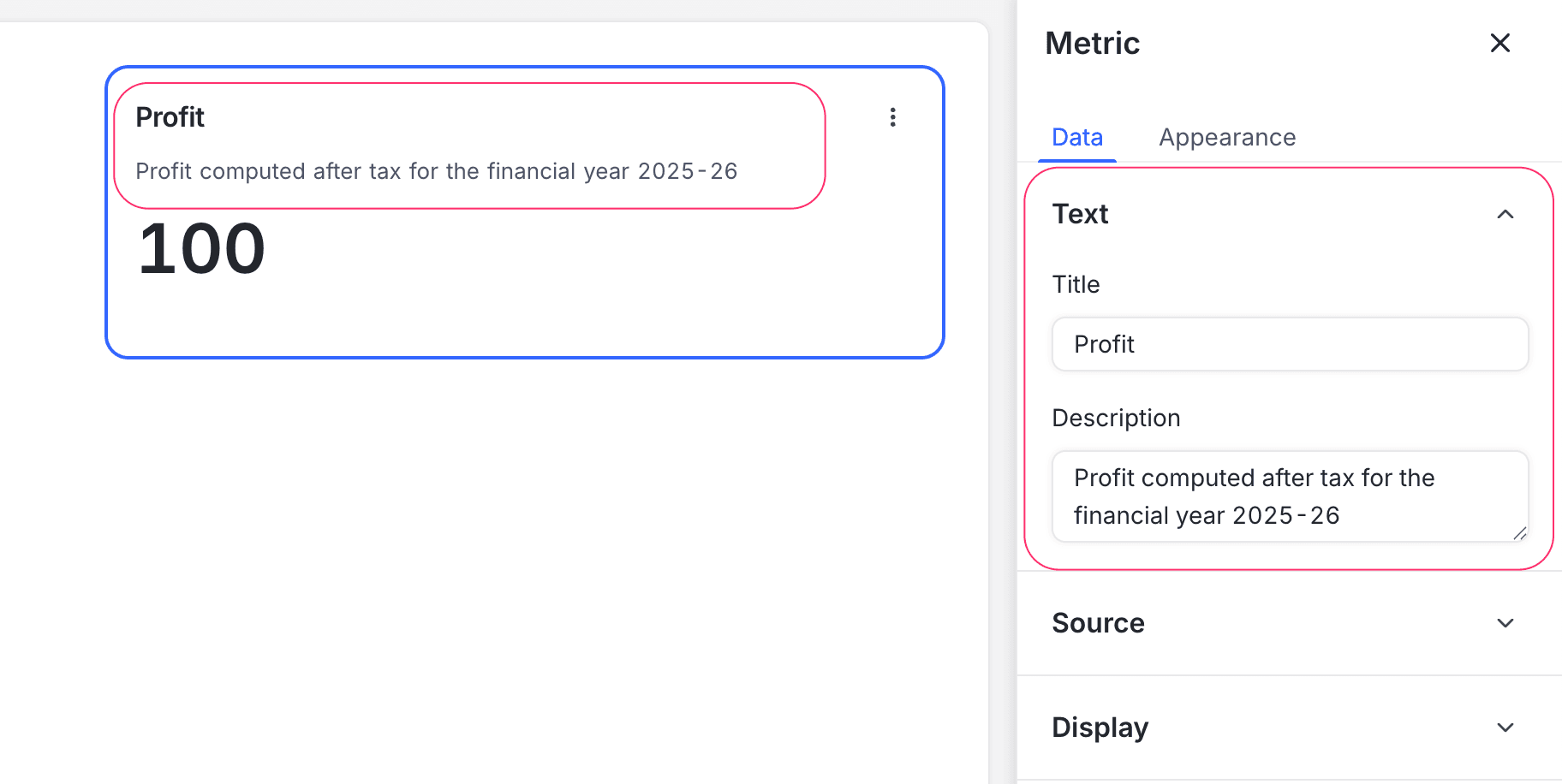

Title & description

• Title: Enter a title for the number widget. This will be displayed prominently at the top of the widget.
• Description: Optionally, add a description to provide context or details about the metric being displayed. This will appear below the title.

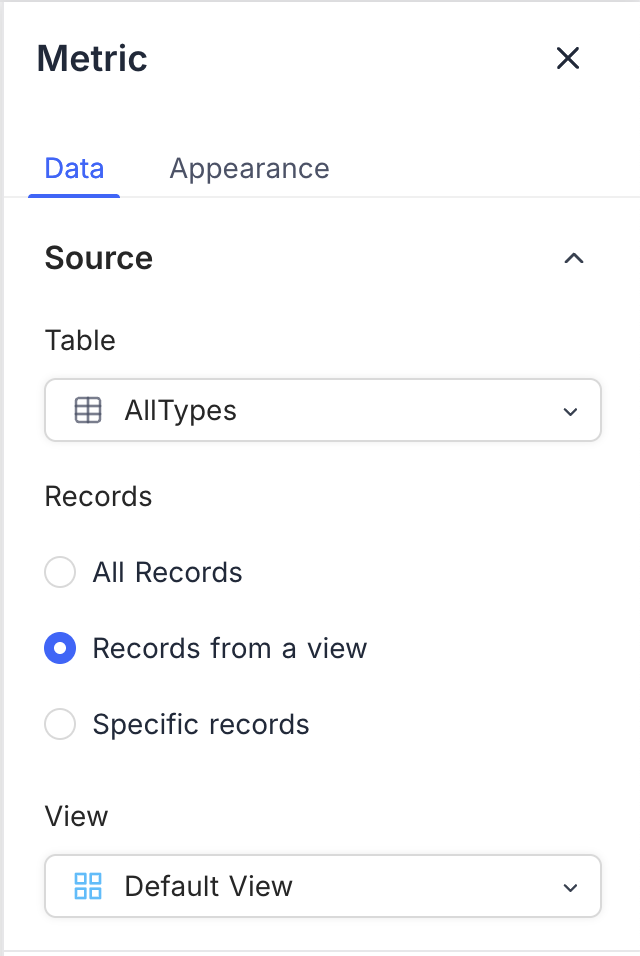

Data source

• Table: Select the table from which you want to pull data for the number widget. This is the primary source of records for the metric.
• Record: Select records from the chosen table to be included in the metric calculation. You can choose from:
  • All Records: Displays the total count of records in the selected table.
  • Records from a view: Allows you to filter records based on a specific view, enabling focused metrics. You need to select a view from the dropdown.

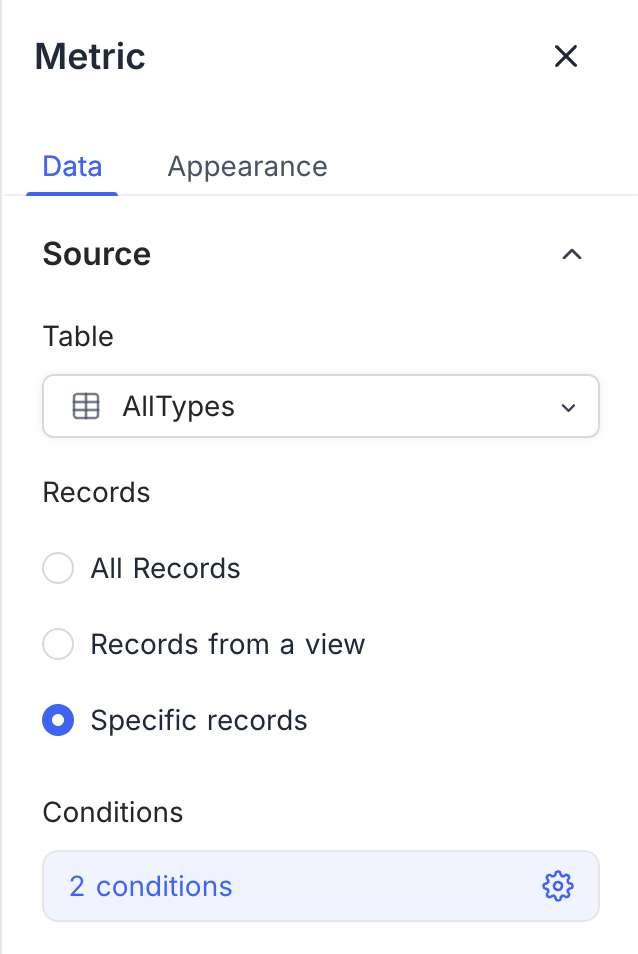

  • Specific Records: Apply filters to select specific records for the metric. This is useful for showing metrics based on certain criteria. You can add multiple filters to refine the selection.

Display

• Record Count: Displays the total number of records in the selected source.

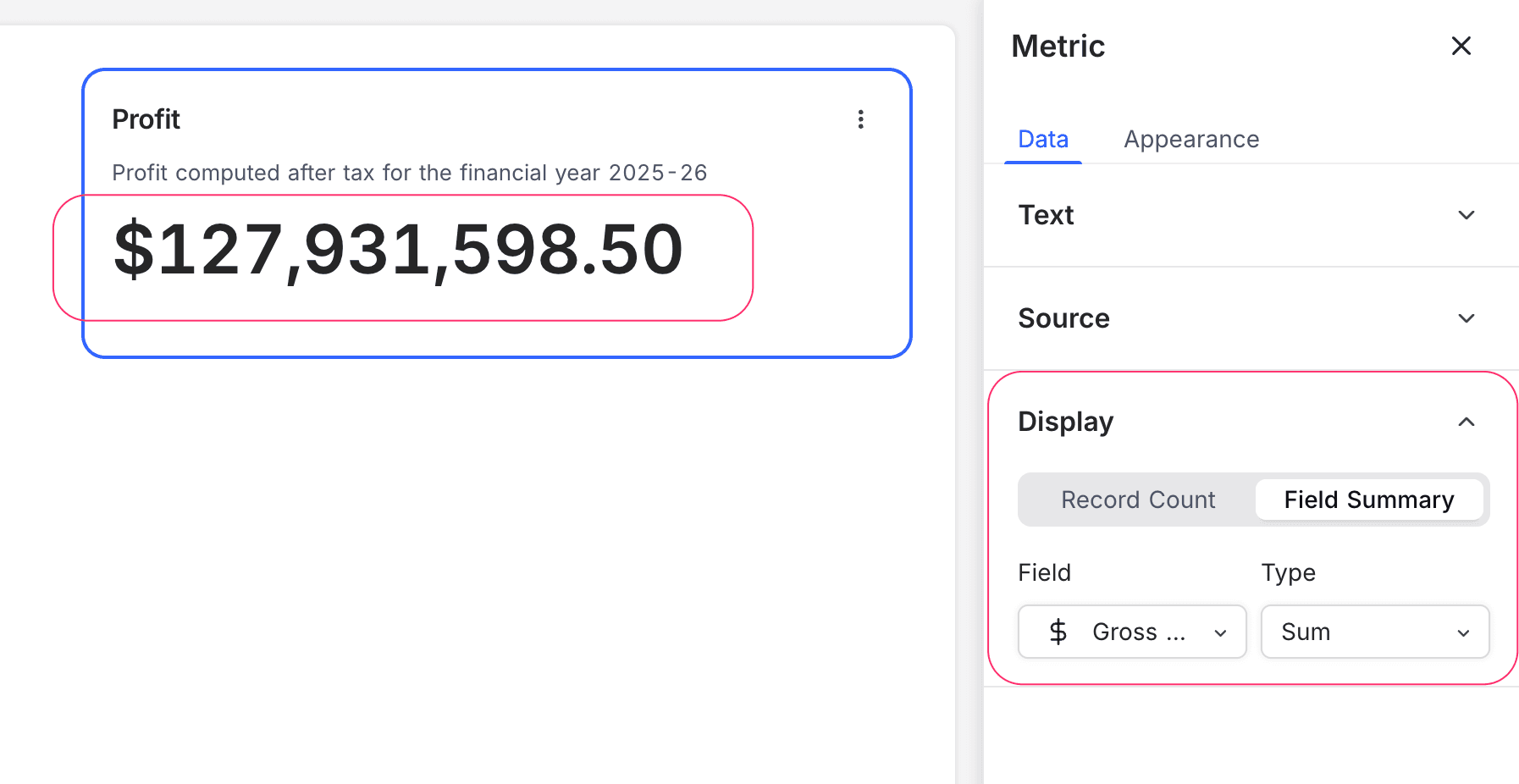

• Field Summary: Shows the sum, average, minimum, maximum, or count of a specific field across the selected records. Available options vary based on the field type.

Appearance

Number Format: Choose how the number is displayed, such as:

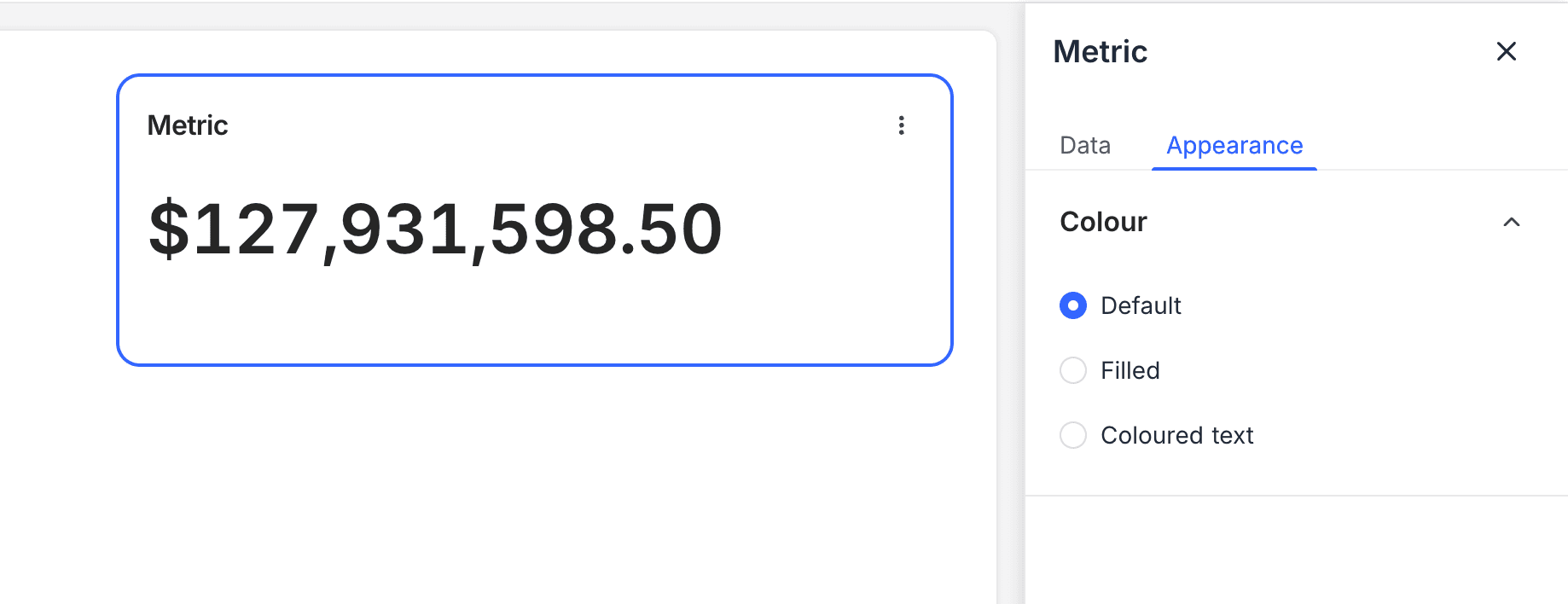

• Default: Standard numeric format.

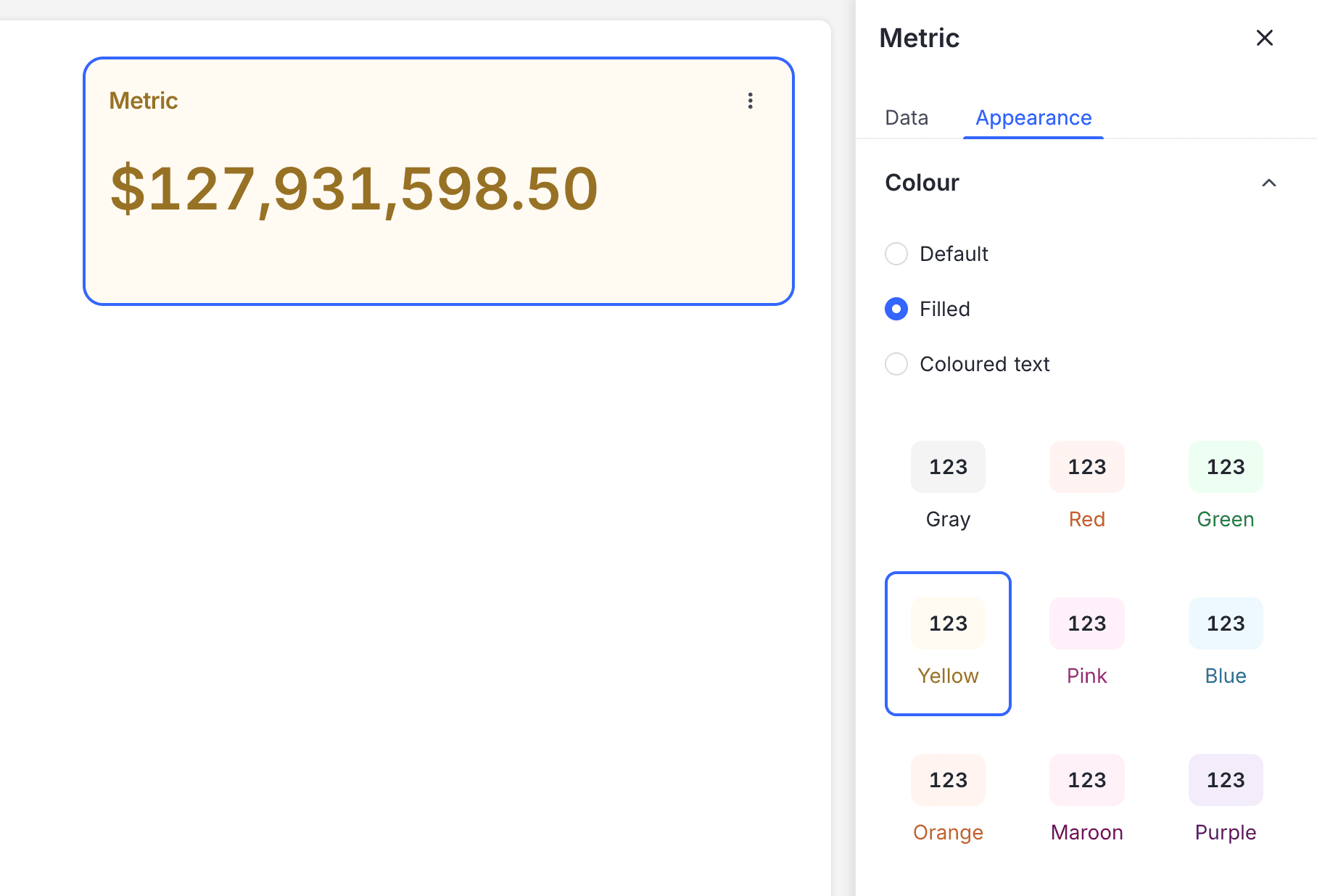

• Filled: Displays the number with a filled background.

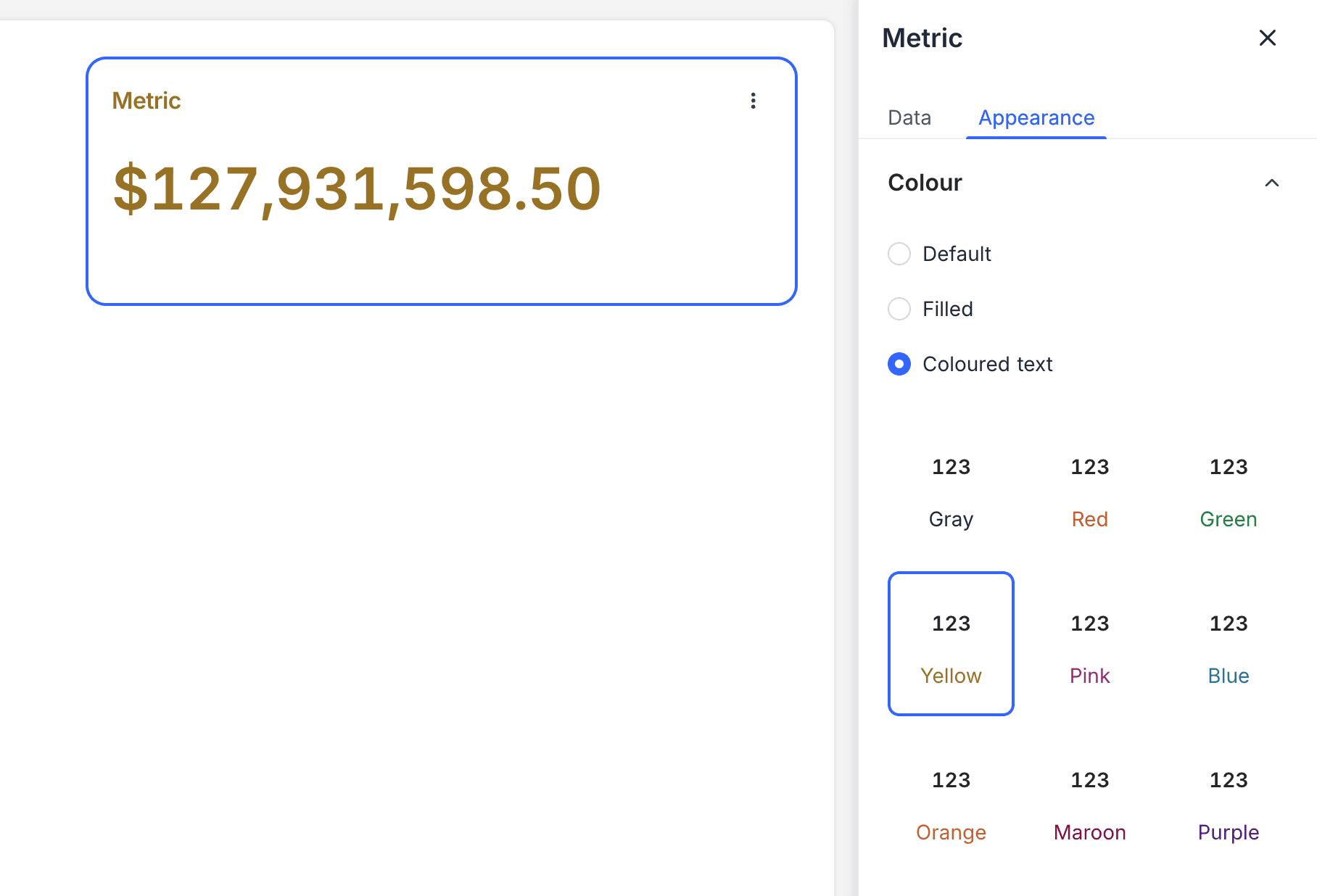

• Coloured Text: Uses color to highlight the number, making it stand out.
