Colouring records ☁

In NocoDB, you can apply colours to records in a table to visually distinguish them based on specific criteria. This feature is particularly useful for highlighting important information or categorizing records. Record colouring is available for Grid, Gallery, Kanban & Calendar views.

When using conditions-based colouring, you can choose between two colouring modes:

• Row colouring — applies colour to the entire record (available on Plus plan and higher)
• Cell colouring — applies colour to a specific field within the record (available on Business plan and higher)

Colouring is applied at view level; hence, configuring colour in one view will not affect the same record in another view.

Add record colour

You can access the record colouring options by clicking the Colour button in the toolbar of any table view.

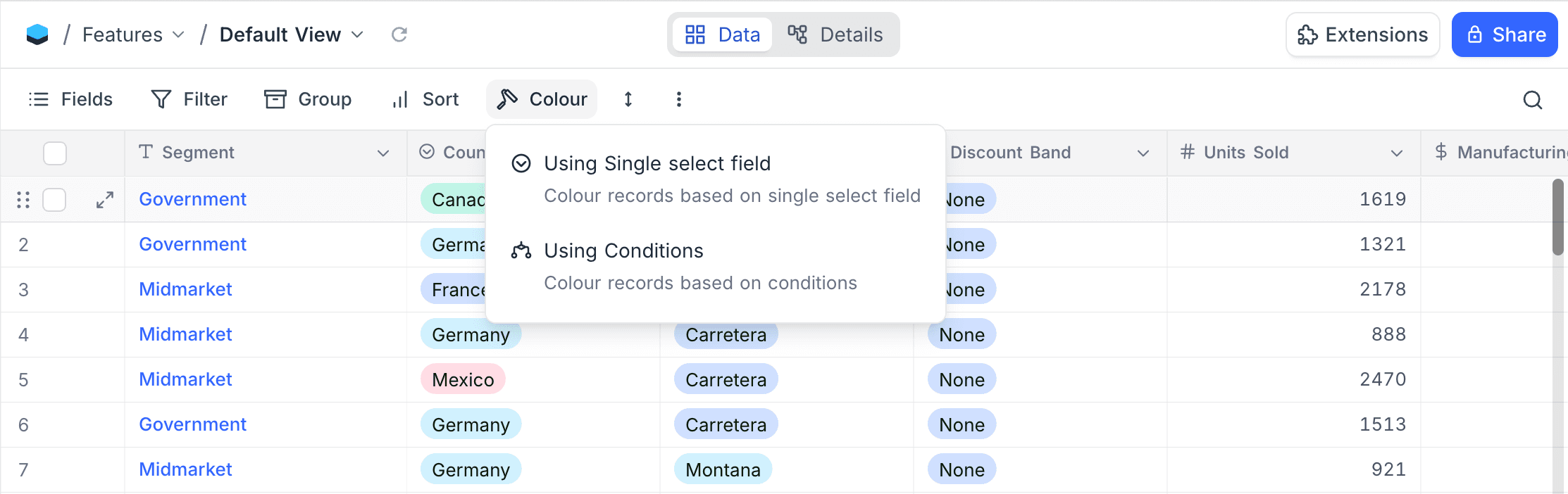

You can colour your records based on

1. Single select field
2. Conditions

Based on single select field

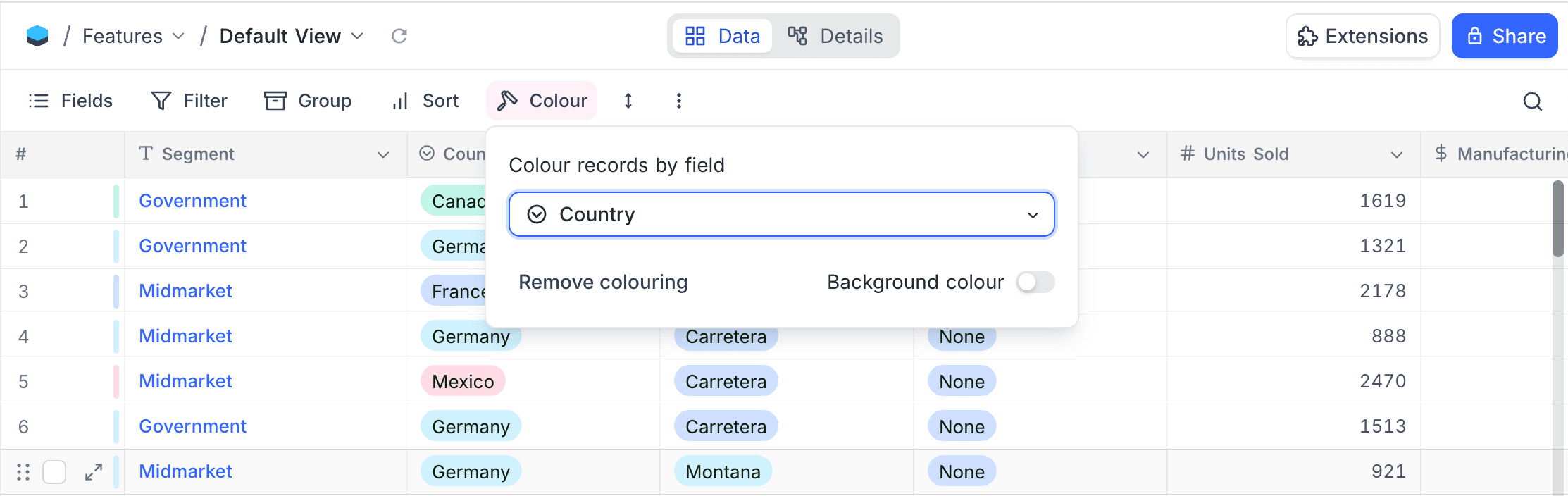

To colour records based on a single select field, follow these steps:

1. Click the Colour button in the toolbar.
2. Select the Using Single select field option.
3. Choose the single select field you want to use for colouring records from the dropdown menu.

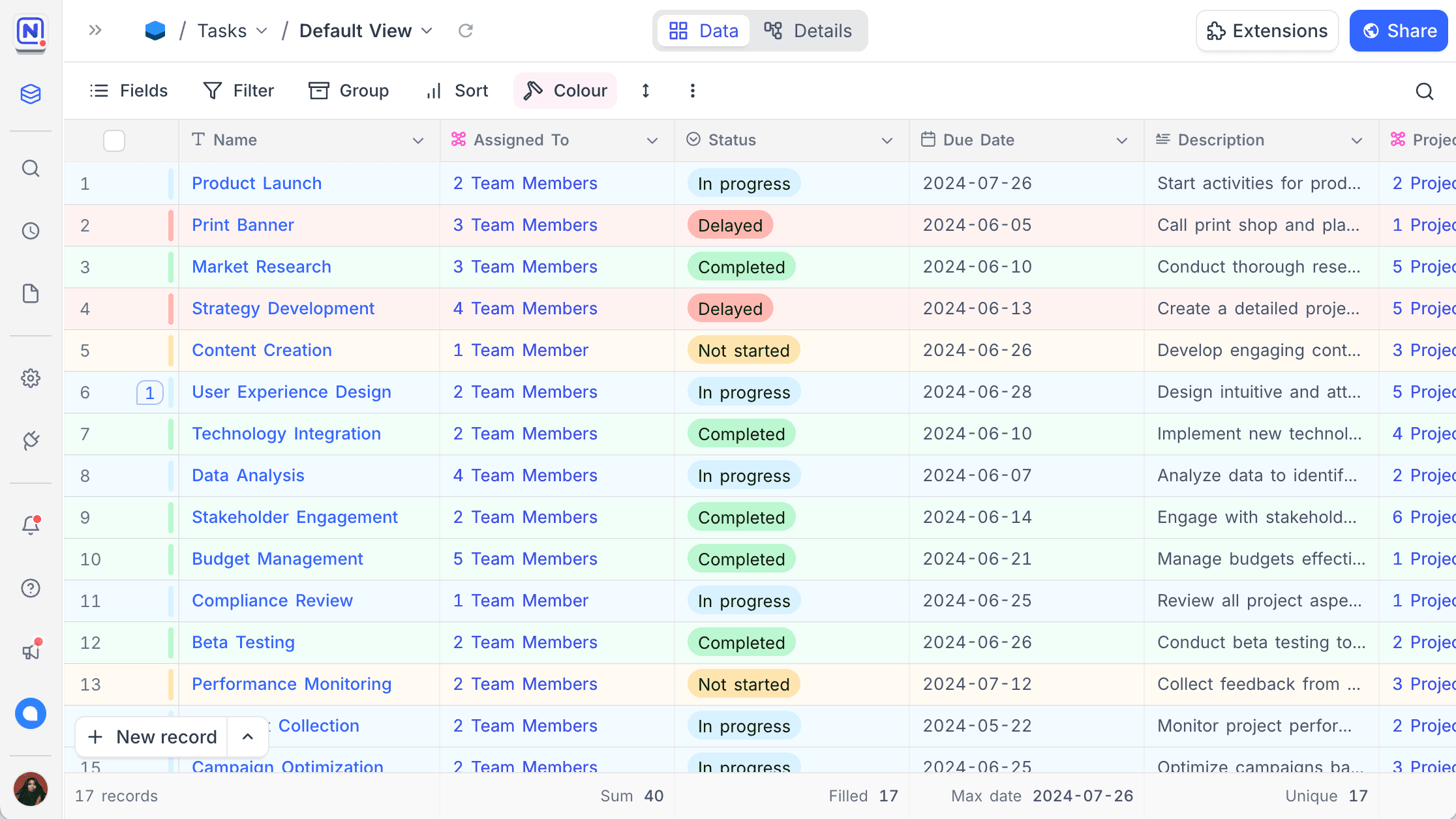

When colouring records using a single select field, each record inherits the colour associated with its selected option in that field. Records without a value in the selected field will not be coloured. This behaviour is predefined and cannot be customized.

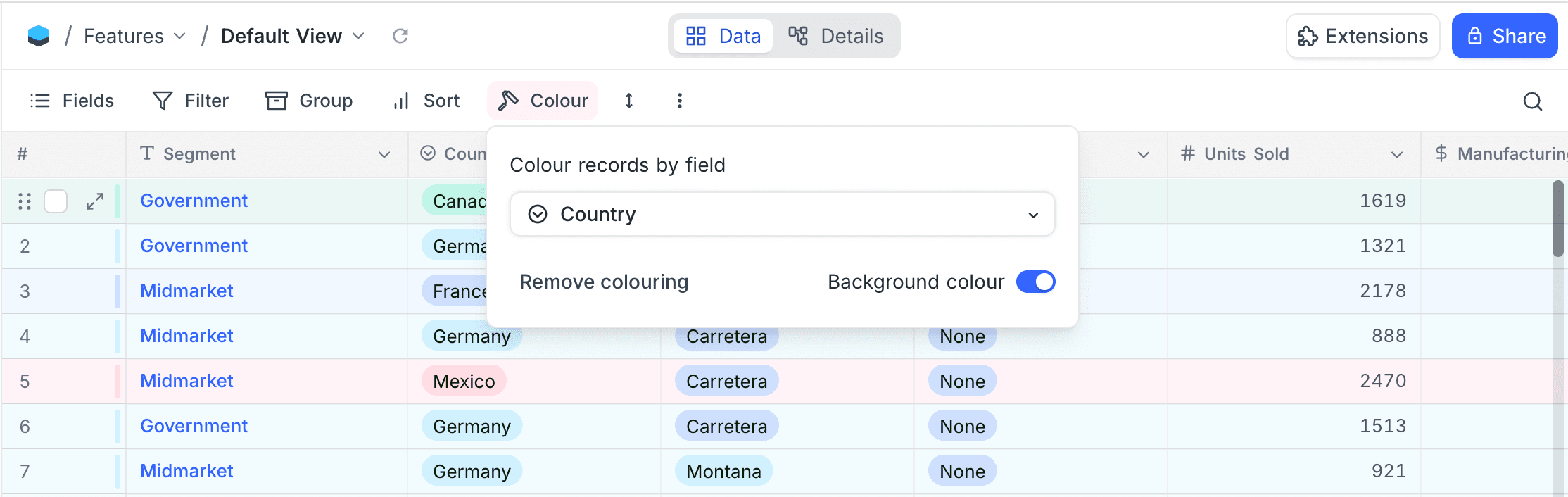

Row colouring by default applies a left border to the records in the table view. You can additionally apply background colour to the records by toggling the Background colour option.

Based on conditions

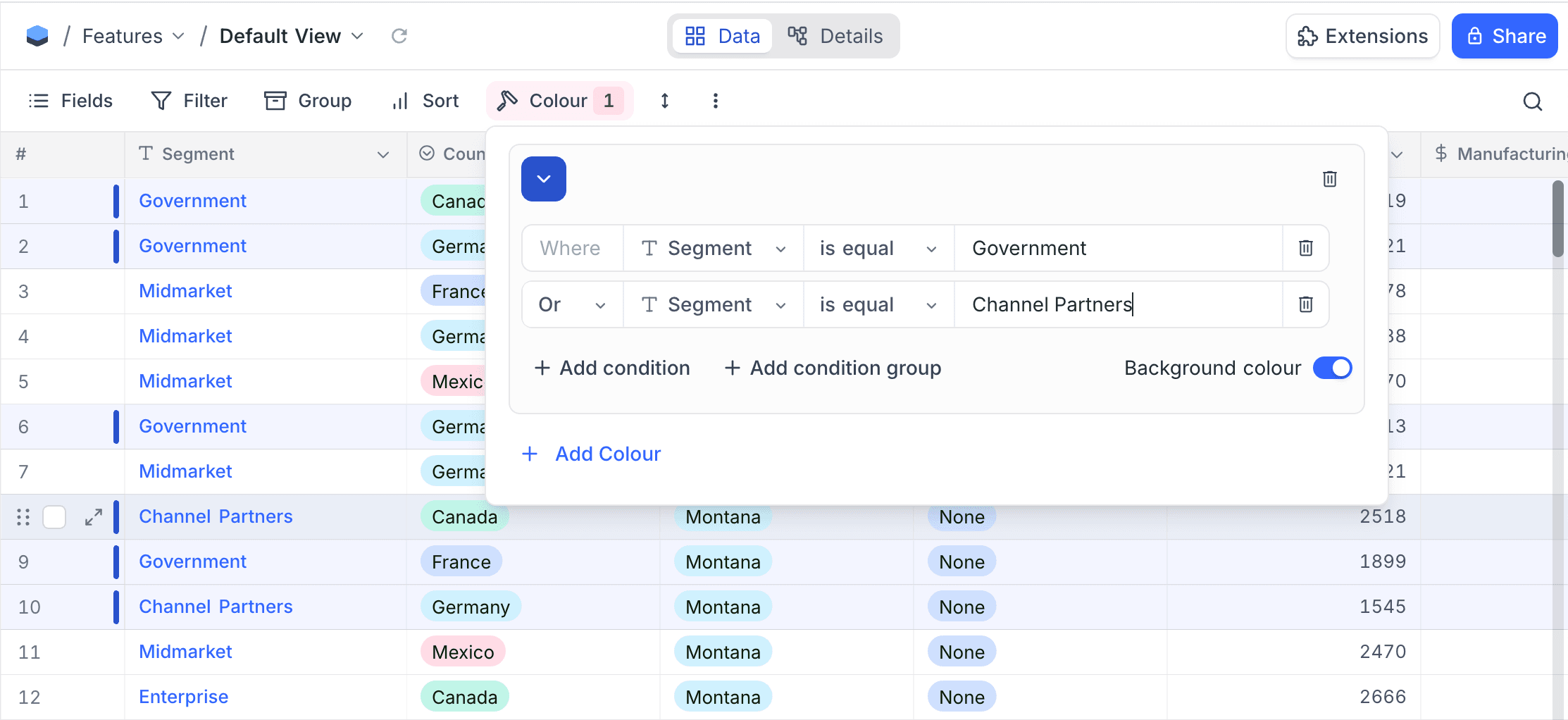

To colour records based on conditions, follow these steps:

1. Click the Colour button in the toolbar.
2. Select the Using Conditions option.
3. Choose the colour you want to apply from the colour picker.
4. Select the colouring mode — Row or Cell — from the dropdown next to the colour picker.
5. If you selected Cell, choose the target field from the field dropdown that appears.
6. Configure the conditions for colouring as required.

You can add multiple conditions to colour records based on different criteria. The conditions are evaluated in the order they are added, and the first matching condition will determine the colour applied to the record or cell.

Row colouring

When the colouring mode is set to Row, the colour is applied to the entire record. This is the default mode.

Row colouring by default applies a left border to the records in the table view. You can additionally apply background colour to the records by toggling the Background colour option.

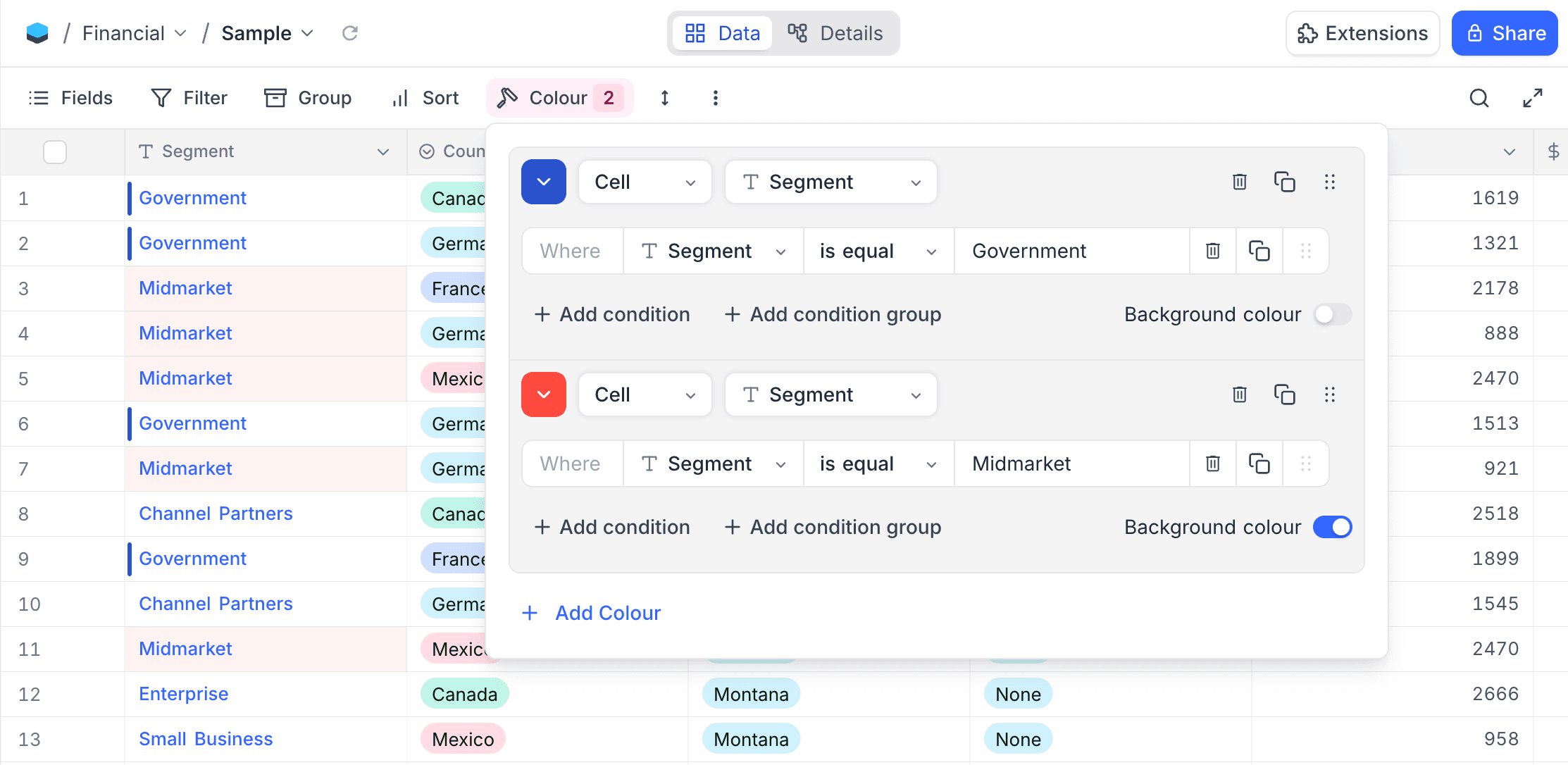

Cell colouring

When the colouring mode is set to Cell, the colour is applied only to the specific field you select. This is useful when you want to draw attention to a particular field value without colouring the entire row.

To configure cell colouring:

1. Select Cell from the colouring mode dropdown next to the colour picker.
2. Choose the target field from the field selector that appears.
3. Configure the conditions and toggle the Background colour option as needed.

When background colour is enabled, the selected field's cell is highlighted with the chosen colour. When background colour is disabled, a vertical colour indicator bar appears on the left edge of the field.

Combining row and cell colouring

You can configure both row and cell colouring conditions within the same view. Each condition can independently be set to either Row or Cell mode. When both row and cell colouring apply to the same record, the cell colour takes precedence over the row colour for the targeted field, while the remaining fields display the row colour.

Modify record colour

• For record colouring based on single select field, you can modify the colour associated with each option in the single select field by using edit-field option.
• For record colouring based on conditions, you can modify the conditions, colouring mode (Row or Cell), target field, and the associated colours as required from the dropdown menu that appears when you click the Colour button in the toolbar.

Note that, it's not possible to have different colour for single select field options in different views. The colour associated with each option in the single select field is consistent across all views where that field is used for colouring records.

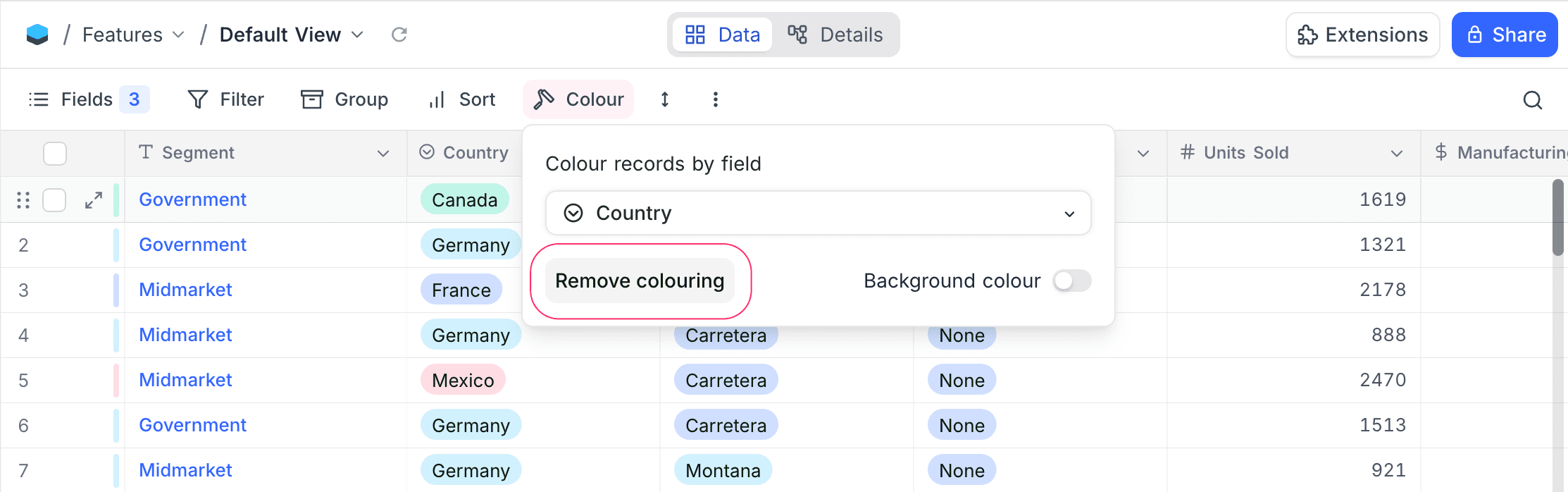

Remove record colour

You can remove the colouring applied to records in a table view by following these steps:

Single select field case

• Click the Colour button in the toolbar.
• Remove conditions one by one by clicking the delete button next to each condition.

Conditions case

• Click the Colour button in the toolbar.
• Click "Remove colouring" button from the dropdown.
